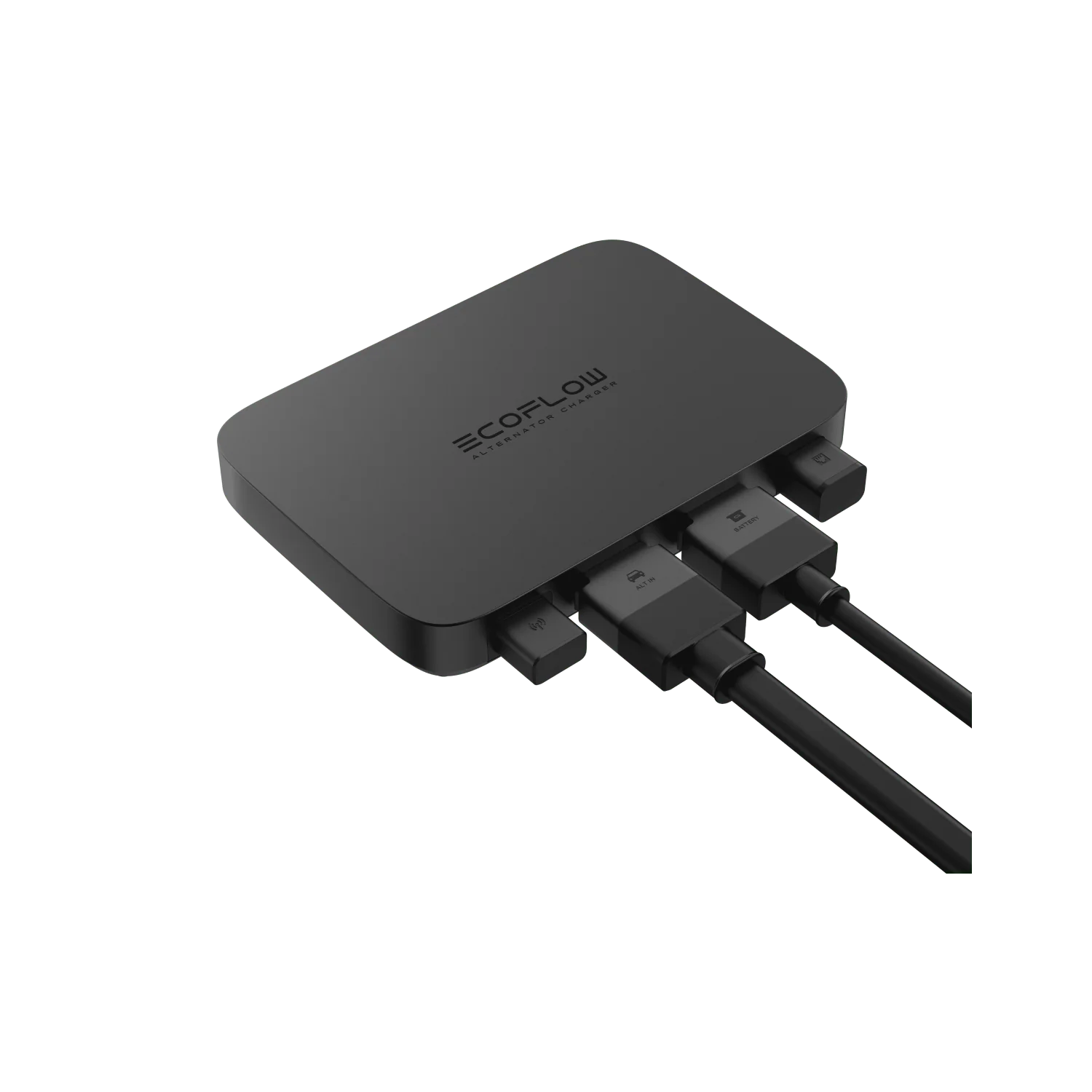

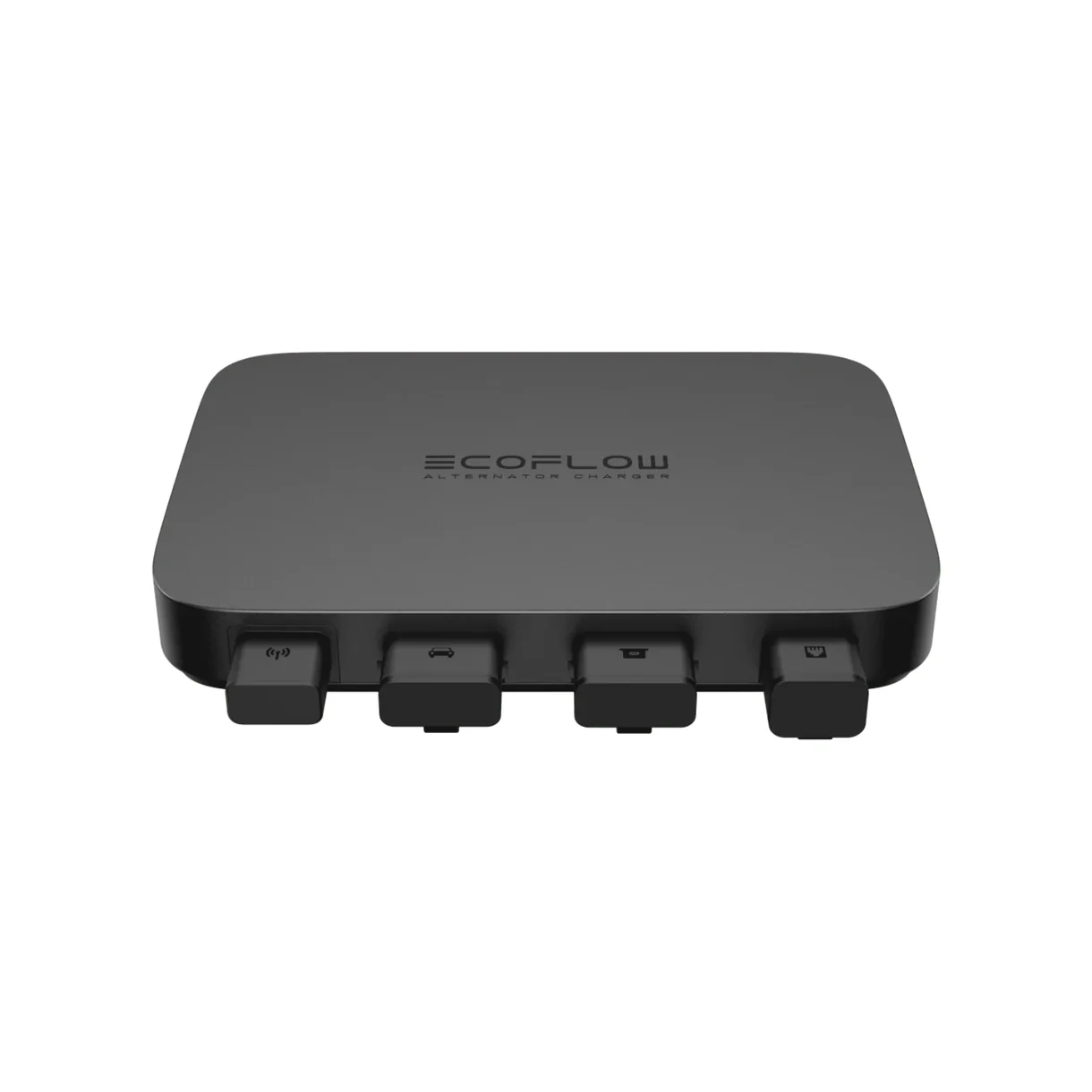

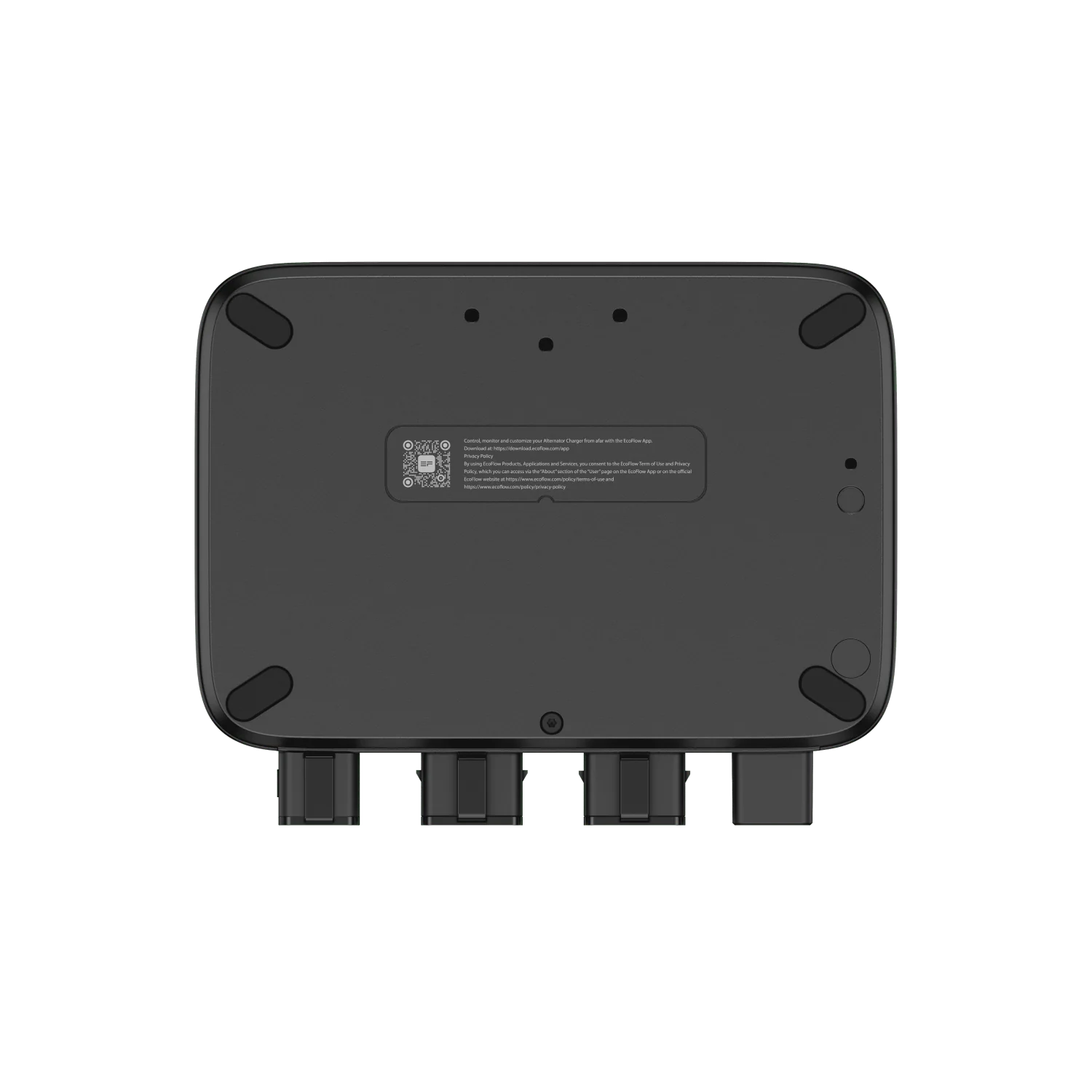

Charge while you drive with our EcoFlow 800W Alternator Charger and top up your power station in only 1.3 hours. The EcoFlow 800W Alternator Charger charges 8 times faster than traditional vehicle auxiliary power outlets simply by using the excess energy generated by your vehicle.
What’s in the box

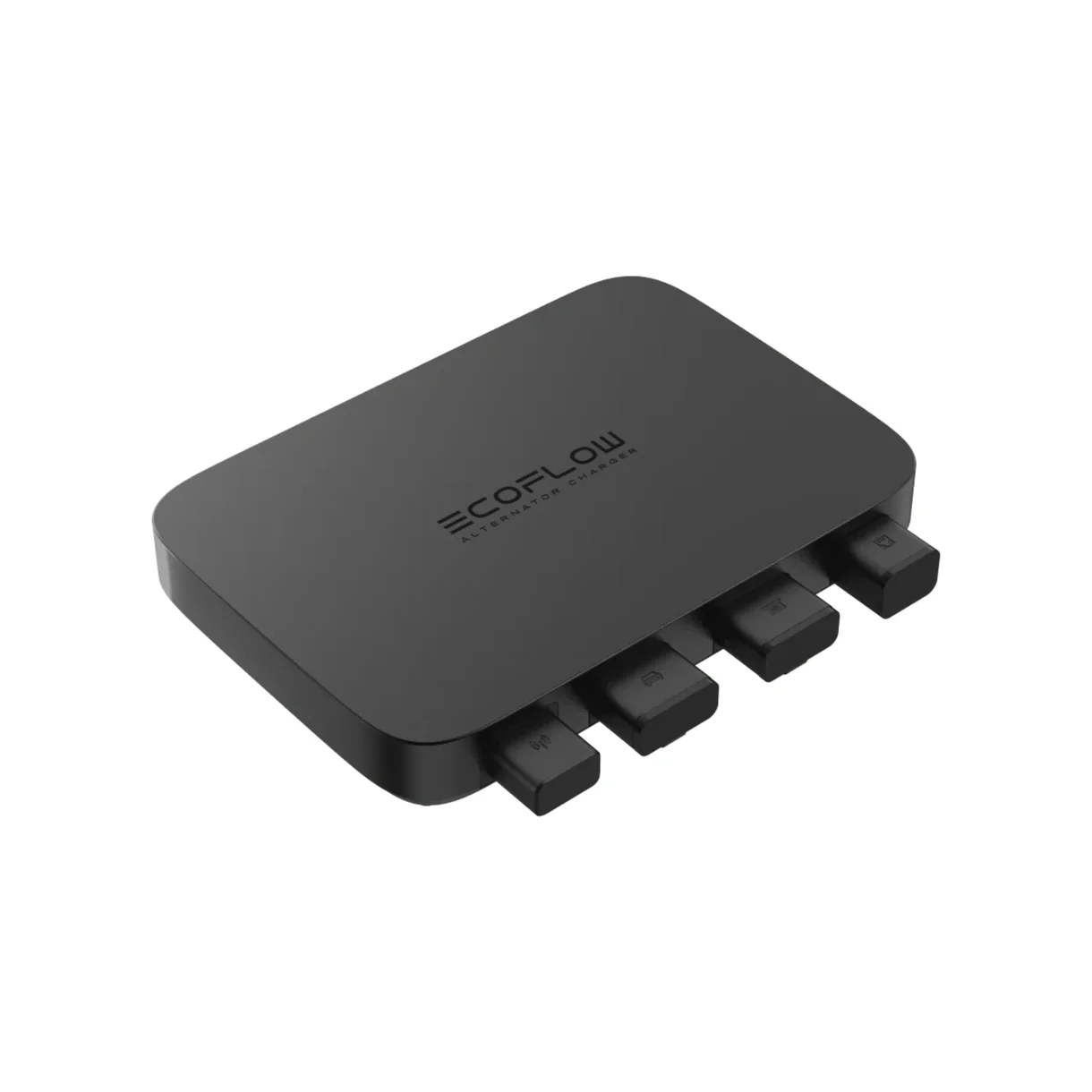

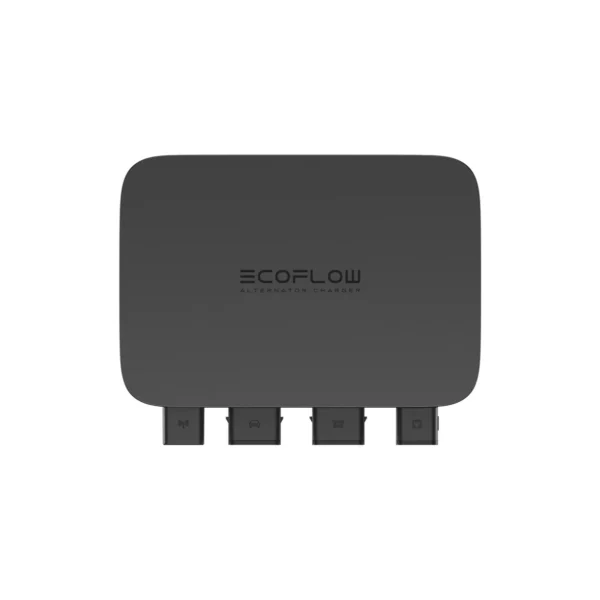

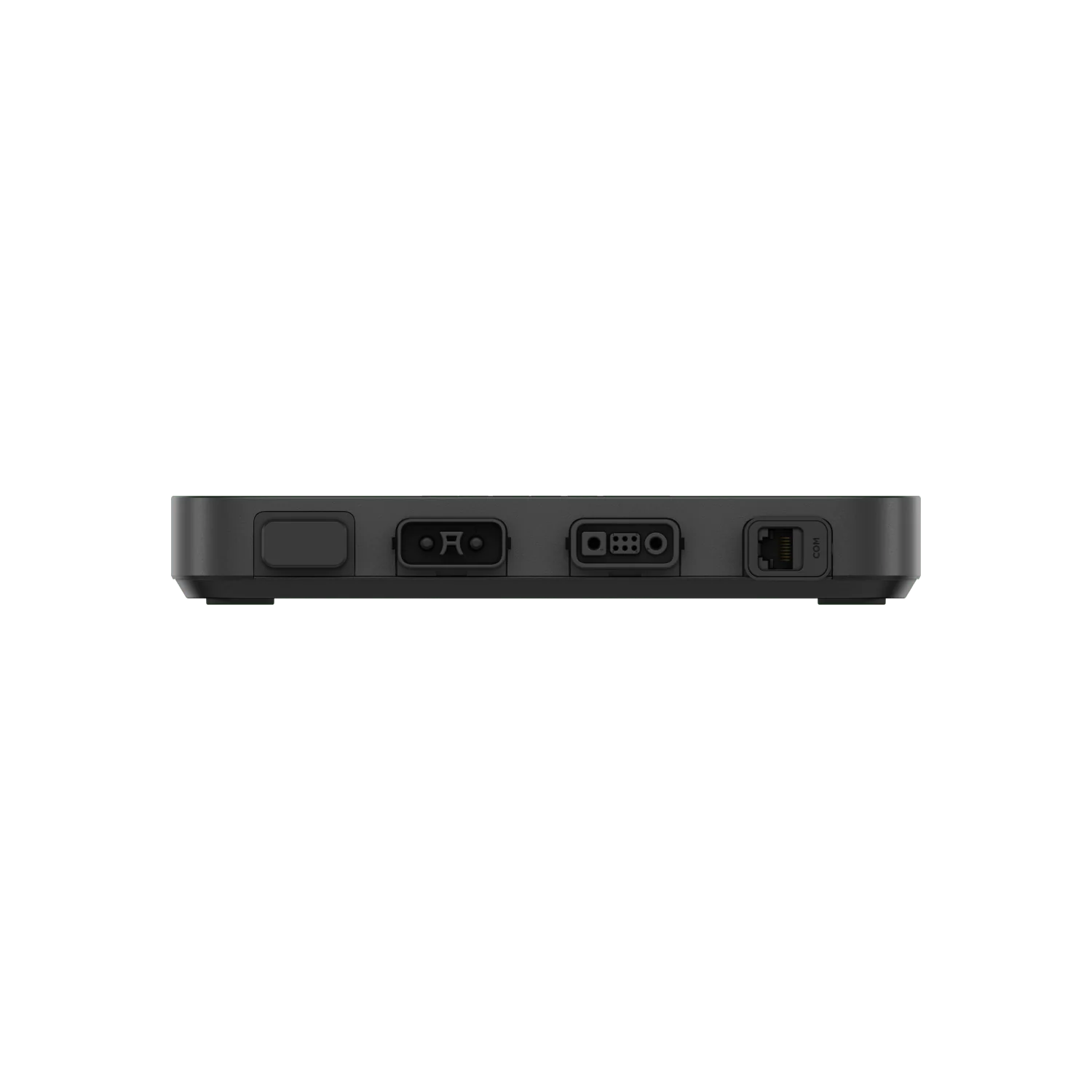

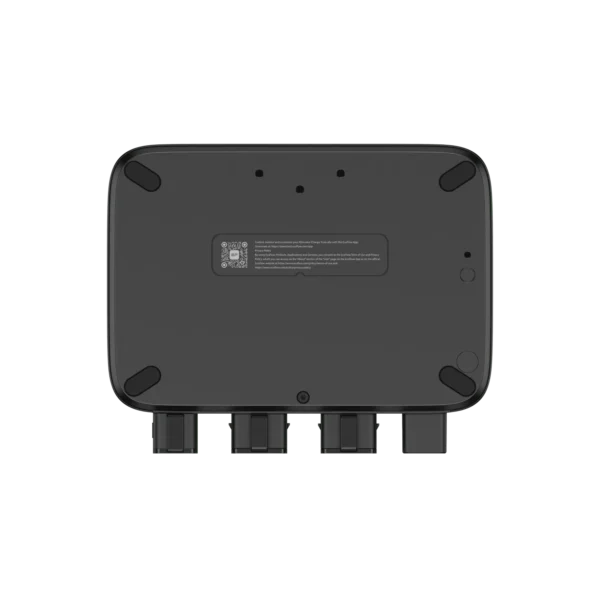

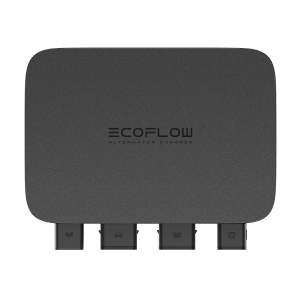

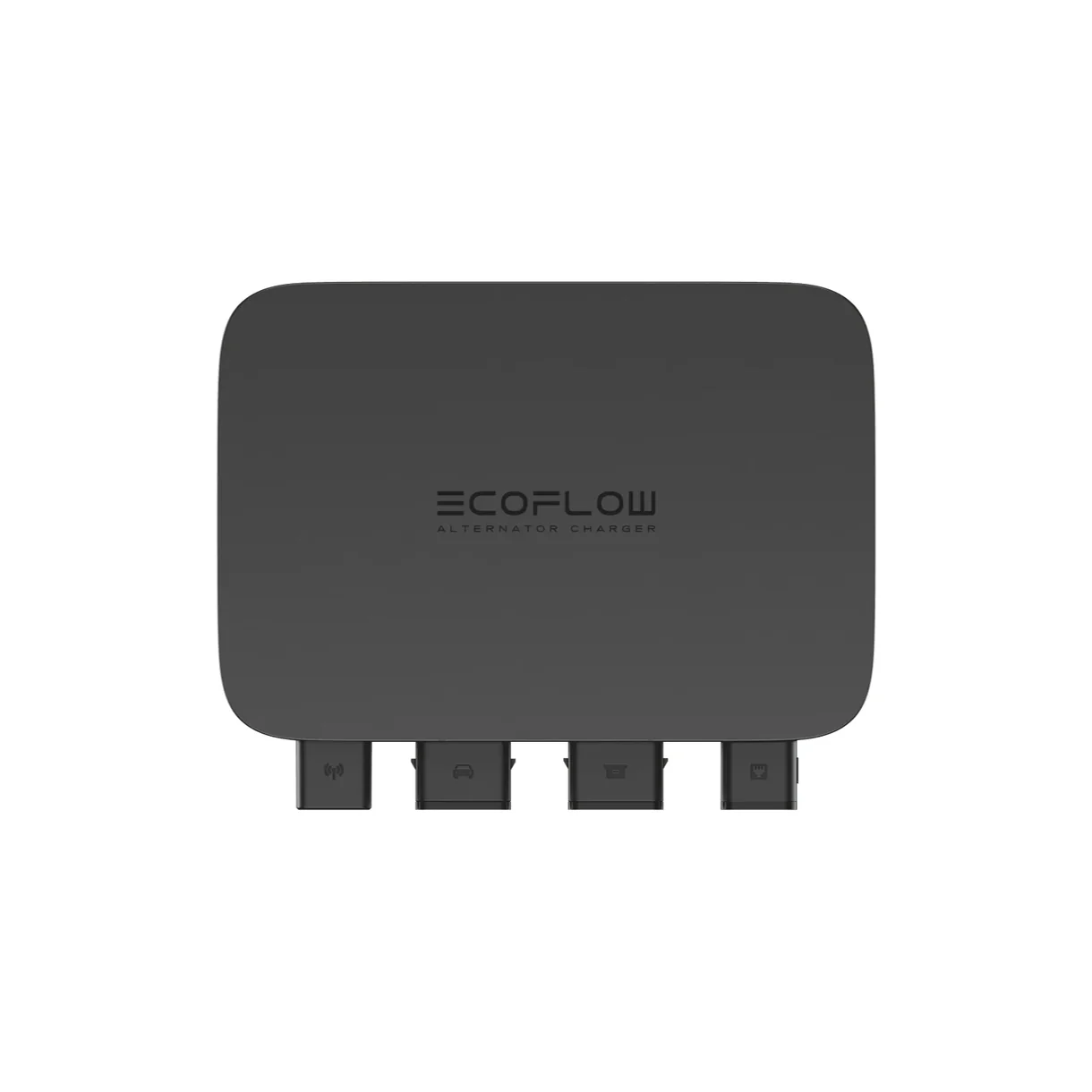

EcoFlow Alternator Charger
Installation board
Cable puller
M6 nut
M5*40
M5*12
Input cable
XT150 output cable
M6*20
Fuse cable
ST5.5*25
Specifications
Model
EF-FC-301-1
Net Weight
4.9 lb (2.2 kg)
Dimensions (W × D × H)
242×194×35 mm
Wi-Fi
Frequency: 2412MHz-2472MHz
Maximum output power: <20dBm
Bluetooth
Frequency: 2402MHz-2480MHz
Maximum output power: <10dBm
Charging Mode
Input: 11V-35V, 76A Max.
Output: 40V-60V, 800W Max.
Battery Maintenance Mode
Input: 40V-60V, 3A Max.
Output: 13.8V/27.6V, 100W Max.
Reverse Charging Mode
Input: 40V-60V, 21A Max.
Output: 13.8V/27.6V, 800W Max.
Fuse’s Rated Current
125A
Protection Type
Reverse polarity protection
Overcurrent protection
Short circuit protection
Overvoltage protection
Undervoltage protection
Operating Temperature
–20℃ to 60℃
Storage Temperature
–30℃ to 70℃
Operating Humidity
≤95%
Storage Humidity
≤95%
